| RYJ XPO INSULATED WIRE |
Description：
Z-RYJ-105：105°C flame retardant XPO insulated flexible wire
WDZ-RYJ-105：105°C flame retardant low smoke low halogen insulated flexible wire
Z-RYJ-125：125°C flame retardant XPO insulated flexible wire
WDZ-RYJ-125：125°C flame retardant low smoke low halogen insulated flexible wire
Z-RYJ-150：150°C flame retardant XPO insulated flexible wire
WDZ-RYJ-150：150°C flame retardant XPO insulated flexible wire
Application：Suitable for rated voltage less than 450/750V and maximum operating
temperature less than 105°C,125°C,or150°C fixing installation,power
transmission intardant equipment Wiring connection occasion

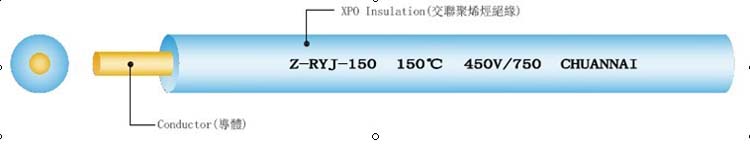

Material：
Conductor：class 2 conductor comforms to GB/T3956
Insulation：Flame retardant low smoke low halogen or low smoke
Halogen-free XPO(105°C、125°C、150°C)
Standard：JB/T 10491-2004 |
 |
|
Conductor |
Insulat |
Overall diameter |
Maximum diameter |
Conductor resistance |
Package |
|
sectional area |
Construction |
Diameter |
Annealed |
Tinned |
|
mm2 |
No./mm |
mm |
mm |
mm |
|
Ω/ km |
Ω/ km |
m |
|
0.50 |
16/0.20 |
0.93 |
0.6 |
2.13 |
2.60 |
39.0 |
40.1 |
500 |
|
0.75 |
24/0.20 |
1.14 |
0.6 |
2.34 |
2.80 |
26.0 |
26.7 |
500 |
|
1.00 |
32/0.20 |
1.32 |
0.7 |
2.72 |
3.00 |
19.5 |
20.0 |
500 |
|
1.50 |
30/0.25 |
1.60 |
0.7 |
2.80 |
3.40 |
13.3 |
13.7 |
500 |
|
2.50 |
49/0.25 |
2.00 |
0.8 |
3.60 |
4.00 |
7.98 |
8.21 |
300 |
|
4.00 |
56/0.30 |
2.60 |
0.8 |
4.20 |
5.00 |
4.95 |
5.09 |
300 |
|
6.00 |
84/0.30 |
3.60 |
0.8 |
5.20 |
5.80 |
3.30 |
3.39 |
300 | |
|
|
