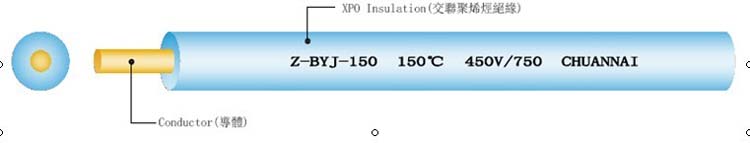

BYJ XPO INSULATED WIRE

Description：
Z-BYJ-105：105℃ flame retardant XPO insulated wire
WDZ-BYJ-105：105℃flame retardant low smoke low halogen insrlated wire
Z-BYJ-105：125℃ flame retardant XPO insulated wire
WDZ-BYJ-125：125℃flame retardant low smoke low halogen insulated wire
Z-BYJ-150：150℃flame retardant XPO insrlated wire
WDZ-BYJ-150：150℃flame retardant low smoke low halogen insulated wire
Application：
              Suitable for voltage less than 450/750V and maximum operating
                Temperature less than 105℃,125℃ or 150℃ fixing installation,power
               Transmission or internal equipment Wiring connection occasion
Material：
             Conductor：class 1 conductor comforms to GB/T3956
              Insulation：Flame retardant low smoke low halogen or low smoke
             Halogen-free XPO(105℃、125℃、150℃)

Standard：JB/T 10491-2004

Conductor			thickness	Overall diameter	Maximum diameter	Conductor resistance		Package
sectional area	Construction	Diameter	thickness	Overall diameter	Maximum diameter	Annealed	Tinned	Package
mm²	No./mm	mm	mm	mm		Ω/ km	Ω/ km	m
0.5	1/0.80	0.80	0.6	2.00	2.60	3.60	3.67	500
0.5	7/0.30	0.92	0.6	2.12	2.70	3.60	3.67	500
0.75	1/0.97	0.97	0.6	2.17	2.70	24.5	2.48	500
0.75	7/0.37	1.13	0.6	2.33	2.80	24.5	2.48	500
1.00	1/1.13	1.13	0.7	2.53	2.90	18.1	18.2	500
1.00	7/0.43	1.31	0.7	2.71	3.10	18.1	18.2	500
1.50	1/1.38	1.38	0.7	2.78	3.30	12.1	12.2	500
1.50	7/0.52	1.59	0.7	2.99	3.40	12.1	12.2	500
2.50	1/1.78	1.78	0.8	3.38	3.90	7.41	7.56	300
2.50	7/0.68	2.08	0.8	3.68	4.20	7.41	7.56	300
4.00	1/2.25	2.25	0.8	3.85	4.40	4.61	4.70	300
4.00	7/0.85	2.60	0.8	4.20	4.80	4.61	4.70	300
6.00	1/2.76	2.76	0.8	4.36	4.90	3.08	3.11	300
6.00	7/1.04	3.18	0.8	4.78	5.40	3.08	3.11	300
