| JYJ150 |
Description：
Maximum operating temperature：125/150℃
Rated voltage：500V/1000V
Application：
Suitable for as electromechanical winding primary or secondary
Circuit which requires maximrm operating temperature less than
125/150℃

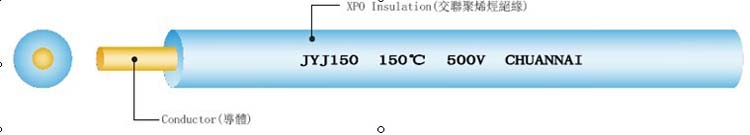

Material：
Conductor：Annealed or tinned stranded copper
Insulation： Low halogen or halogen-free XPO(125/150℃)(125°C)
Standard：JB/T 6213.6-2006 |
 |
|
Conductor |
Insulation thickness |
Overall diameter |
Conductor resistance |
Package |
|
sectional area |
Construction |
Diameter |
Annealed |
Tinned |
|
mm2 |
No./mm |
mm |
mm |
mm |
Ω/ km |
Ω/ km |
m |
|
0.50 |
16/0.20 |
0.93 |
0.8 |
2.53 |
39.0 |
40.1 |
500 |
|
0.75 |
24/0.20 |
1.14 |
0.8 |
2.74 |
26.0 |
26.7 |
500 |
|
1.00 |
32/0.20 |
1.32 |
0.8 |
2.92 |
19.5 |
20.0 |
500 |
|
1.50 |
30/0.25 |
1.60 |
0.8 |
3.20 |
13.3 |
13.7 |
500 |
|
2.50 |
49/0.25 |
2.00 |
0.8 |
3.60 |
7.98 |
8.21 |
500 |
|
4.00 |
56/0.30 |
2.60 |
0.8 |
4.20 |
4.95 |
5.09 |
300 |
|
6.00 |
84/0.30 |
3.60 |
0.8 |
5.20 |
3.30 |
3.39 |
300 | |
|
|
