| QVR-105 Low-voltage cables for automobiles |
Description：
Q：Low-voltage cables for automobiles
V：Vinyl insulated
R：Flexible
105： Related temperature 105℃
Application：Wire harness of low-tension electric circuits for automobiles

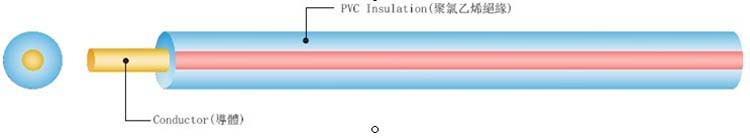

Material：
Conductor：Annealed or tinned stranded copper
Insulation：Lead-free polyvinyl chloride (105°C)
Standard：JB/T 8139-1999 |
 |
|
Conductor |
Insulation
thickness |
Overall diameter |
Conductor resistance |
Weight |
Package |
|
Sectional area |
Construction |
Diameter |
Standard |
Maximum |
Annealed |
Tinned |
|
mm2 |
No./mm |
mm |
mm |
mm |
mm |
Ω/ km |
Ω/ km |
kg / km |
m |
|
0.50 |
16/0.20 |
0.93 |
0.6 |
2.13 |
2.4 |
39.0 |
40.1 |
8 |
500 |
|
0.75 |
24/0.20 |
1.14 |
0.6 |
2.34 |
2.6 |
26 |
25.7 |
11 |
500 |
|
1.00 |
32/0.20 |
1.32 |
0.6 |
2.52 |
2.8 |
19.5 |
20.0 |
14 |
500 |
|
1.50 |
30/0.25 |
1.60 |
0.6 |
2.80 |
3.1 |
13.3 |
13.7 |
19 |
500 |
|
2.50 |
49/0.25 |
2.00 |
0.7 |
3.40 |
3.7 |
7.98 |
8.21 |
30 |
300 |
|
4.00 |
56/0.30 |
2.60 |
0.8 |
4.20 |
4.5 |
4.95 |
5.09 |
48 |
300 |
|
6.00 |
84/0.30 |
3.60 |
0.8 |
5.20 |
5.1 |
3.30 |
3.39 |
68 |
300 | |
|
|
