| FLRY-B Low-Voltage Cables in Motor Vehicles |
Description：
FL：Low-tension cables
R：Reduced thickness of insulation
Y：Polyvinyl chloride insulated
B：Asymmetrical conductor setup
Application：Wire harness of low voltage electric circuits for automobiles

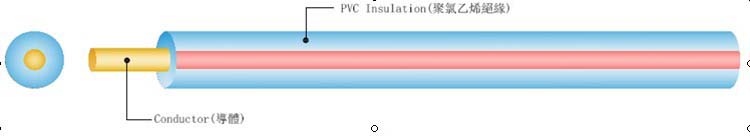

Material：
Conductor：Annealed copper
Insulation：Lead-free polyvinyl chloride (100°C)
Standard：
DIN 72551
VW 60306（Reference） |
 |
|
Conductor |
Minimum
insulation thickness |
Overall diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Sectional area |
Diameter |
Standard |
Maximum |
|
mm2 |
No./mm |
mm2 |
mm |
mm |
mm |
mm |
mΩ/ m |
kg / km |
m |
|
0.35 |
12/0.21 |
0.416 |
0.84 |
0.20 |
1.30 |
1.40 |
52.0 |
4.5 |
500 |
|
0.5 |
16/0.21 |
0.554 |
0.97 |
0.22 |
1.50 |
1.60 |
37.1 |
6.6 |
500 |
|
0.75 |
24/0.21 |
0.831 |
1.19 |
0.24 |
1.70 |
1.90 |
24.7 |
9.0 |
500 |
|
1.0 |
32/0.21 |
1.108 |
1.37 |
0.24 |
1.90 |
2.10 |
18.5 |
11.0 |
500 |
|
1.5 |
30/0.26 |
1.593 |
1.64 |
0.24 |
2.20 |
2.40 |
12.7 |
16.0 |
500 |
|
2.5 |
50/0.26 |
2.655 |
2.12 |
0.28 |
2.80 |
3.00 |
7.6 |
26.0 |
200 |
|
4.0 |
56/0.31 |
4.226 |
2.68 |
0.32 |
3.50 |
3.70 |
,
4.7 |
42.0 |
200 |
|
6.0 |
84/0.31 |
6.340 |
3.28 |
0.32 |
4.10 |
4.30 |
3.1 |
61.0 |
200 | |
|
|
