| FLRY-A Low-Voltage Cables in Motor Vehicles |
Description：
FL：Low-tension cables
R：Reduced thickness of insulation
Y：Polyvinyl chloride insulated
A：Symmetrical conductor setup
Application:Wire harness of low voltage electric circuits for automobiles

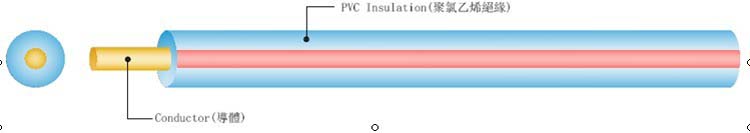

Material：
Conductor：Annealed copper
Insulation：Lead-free polyvinyl chloride (100°C)
Standard：
DIN 72551
VW 60306（Reference） |
 |
|
Conductor |
Minimum
insulation thickness |
Overall diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Sectional area |
Diameter |
Standard |
Maximum |
|
mm2 |
No./mm |
mm2 |
mm |
mm |
mm |
mm |
mΩ/ m |
kg / km |
m |
|
0.22 |
7/0.21 |
0.242 |
0.64 |
0.20 |
1.10 |
1.20 |
84.8 |
3.1 |
500 |
|
0.35 |
7/0.26 |
0.372 |
0.79 |
0.20 |
1.20 |
1.30 |
52.0 |
4.5 |
500 |
|
0.5 |
19/0.19 |
0.539 |
0.96 |
0.22 |
1.50 |
1.60 |
37.1 |
6.6 |
500 |
|
0.75 |
19/0.23 |
0.789 |
1.16 |
0.24 |
1.70 |
1.90 |
24.7 |
9.0 |
500 |
|
1.0 |
19/0.26 |
1.009 |
1.31 |
0.24 |
1.90 |
2.10 |
18.5 |
11.0 |
500 |
|
1.5 |
19/0.32 |
1.528 |
1.61 |
0.24 |
2.20 |
2.40 |
12.7 |
16.0 |
500 |
|
2.5 |
19/0.41 |
2.508 |
2.06 |
0.28 |
2.80 |
3.0 |
7.6 |
26.0 |
200 | |
|
|
