| TXL Low-voltage cables for automobiles |
Description：

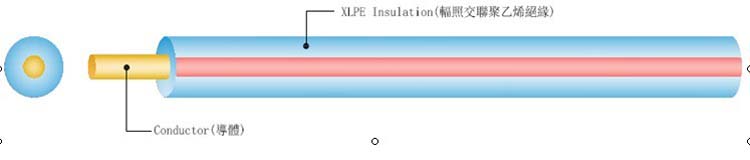

TXL：Thin wall，Cross (X) linked polyolefin insulated
Application：
Wire harness of low-tension electric circuits for automobiles
Especially used for circuits requiring heat resistance and cold resistance
Material：
Conductor：Annealed or tinned stranded copper
Insulation： Low halogen or halogen-free cross-linked polyolefin(-40～125°C)
Standard：
SAE J 1128
FORD ESB-M1L123-A（Reference）
CHRYSLER MS-8288（Reference）
PACKARD ELEC ES-M-3075（Reference） |
 |
|
Conductor |
Insulation thickness |
Overall diameter |
Weight |
Package |
|
Size |
Construction |
sectional area |
Diameter |
Standard |
Minimum |
Standard |
Maximum |
|
AWG |
No./mm |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg / km |
m |
|
24 |
7/0.203 |
0.203 |
0.62 |
0.40 |
0.28 |
1.42 |
1.50 |
4 |
500 |
|
22 |
7/0.254 |
0.324 |
0.78 |
0.40 |
0.28 |
1.58 |
1.70 |
5 |
500 |
|
20 |
7/0.32 |
0.508 |
0.98 |
0.40 |
0.28 |
1.78 |
1.90 |
7 |
500 |
|
18 |
19/0.23 |
0.760 |
1.16 |
0.40 |
0.28 |
1.96 |
2.20 |
10 |
500 |
|
16 |
19/0.28 |
1.12 |
1.41 |
0.40 |
0.28 |
2.21 |
2.40 |
14 |
500 |
|
14 |
19/0.36 |
1.85 |
1.81 |
0.40 |
0.28 |
2.61 |
2.70 |
21 |
200 |
|
12 |
19/0.45 |
2.91 |
2.26 |
0.46 |
0.32 |
3.18 |
3.30 |
33 |
200 |
|
10 |
19/0.57 |
4.65 |
2.87 |
0.50 |
0.35 |
3.87 |
4.00 |
51 |
200 |
|
8 |
19/0.72 |
7.23 |
3.62 |
0.56 |
0.39 |
4.38 |
4.90 |
82 |
100 |
|
Remarks：The product meets FORD ESB-M1L123-A,Chrysler MS-8288 and PACKARD ELEC ES M-3075 requirements. | |
|
|
