| SXL Low-voltage cables for automobiles |
Description：
SXL：Special purpose，Cross (X) linked polyolefin insulated
Application：
Wire harness of low-tension electric circuits for automobiles
Especially used for circuits requiring heat resistance and cold resistance

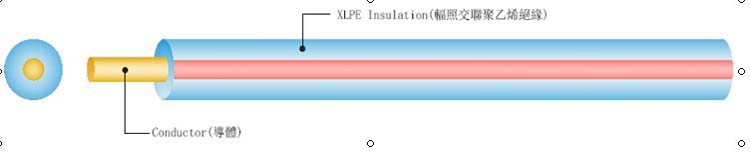

Material：
Conductor：Annealed or tinned stranded copper
Insulation： Low halogen or halogen-free cross-linked polyolefin(-40～125°C)
Standard：
SAE J 1128
FORD ESB-M1L85-A（Reference）
CHRYSLER MS-5919（Reference）
PACKARD ELEC ES-M-3023（Reference） |
 |
|
onductor |
Insulation thickness |
Overall diameter |
Weight |
Package |
|
Size |
Construction |
sectional area |
Diameter |
Standard |
Minimum |
Standard |
Maximum |
|
AWG |
No./mm |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg / km |
m |
|
20 |
7/0.32 |
0.508 |
0.98 |
0.74 |
0.52 |
2.46 |
2.80 |
11 |
500 |
|
18 |
19/0.23 |
0.760 |
1.16 |
0.76 |
0.53 |
2.68 |
3.00 |
14 |
500 |
|
16 |
19/0.28 |
1.12 |
1.41 |
0.81 |
0.57 |
3.03 |
3.40 |
19 |
500 |
|
14 |
19/0.36 |
1.85 |
1.81 |
0.89 |
0.62 |
3.59 |
3.90 |
29 |
200 |
|
12 |
19/0.45 |
2.91 |
2.26 |
0.94 |
0.66 |
4.14 |
4.60 |
41 |
200 |
|
10 |
19/0.57 |
4.65 |
2.87 |
1.04 |
0.73 |
4.95 |
5.30 |
63 |
200 |
|
8 |
19/0.72 |
7.23 |
3.62 |
1.09 |
0.76 |
5..80 |
6.20 |
94 |
100 |
|
Remarks：The product meets FORD ESB-M1L85-A,Chrysler MS-5919 and PACKARD ELEC ES M-3023 requirements. | |
|
|
