| GXL Low-voltage cables for automobiles |
Description：
GXL：General purpose，Cross (X) linked polyolefin insulated
Application：
Wire harness of low-tension electric circuits for automobiles
Especially used for circuits requiring heat resistance and cold resistance

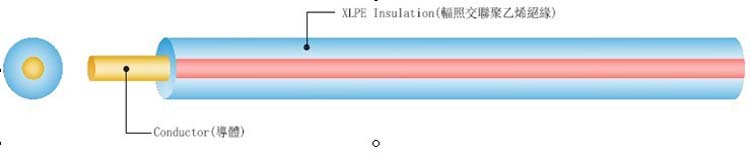

Material：
Conductor：Annealed or tinned stranded copper
Insulation： Low halogen or halogen-free cross-linked polyolefin(-40～125°C)
Standard：
SAE J 1128
FORD ESB-M1L85-B（Reference）
CHRYSLER MS-8900（Reference）
PACKARD ELEC ES-M-3070（Reference） |
 |
|
Conductor |
Insulation thickness |
Overall diameter |
Weight |
Package |
|
Size |
Construction |
sectional area |
Diameter |
Standard |
Minimum |
Standard |
Maximum |
|
AWG |
No./mm |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg / km |
m |
|
20 |
7/0.32 |
0.508 |
0.98 |
0.58 |
0.41 |
2.14 |
2.40 |
9 |
500 |
|
18 |
19/0.23 |
0.760 |
1.16 |
0.58 |
0.41 |
2.32 |
2.50 |
11 |
500 |
|
16 |
19/0.28 |
1.12 |
1.41 |
0.58 |
0.41 |
2.57 |
2.90 |
16 |
500 |
|
14 |
19/0.36 |
1.85 |
1.81 |
0.58 |
0.41 |
2.97 |
3.20 |
24 |
200 |
|
12 |
19/0.45 |
2.91 |
2.26 |
0.66 |
0.46 |
3.58 |
3.80 |
36 |
200 |
|
10 |
19/0.57 |
4.65 |
2.87 |
0.79 |
0.55 |
4.45 |
4.70 |
57 |
200 |
|
8 |
19/0.72 |
7.23 |
3.62 |
0.94 |
0.66 |
5.50 |
6.00 |
86 |
100 |
|
Remarks：The product meets FORD ESB-M1L85-B,Chrysler MS-8900 and PACKARD ELEC ES M-3070 requirements. | |
|
|
