| AVS Low tension cables with thin wall insulation for automobiles |
Description：
A：Low-voltage cables for automobiles
V：Vinyl insulated
S：Thin-wall type
Application：Wire harness of low voltage electric circuits for automobiles

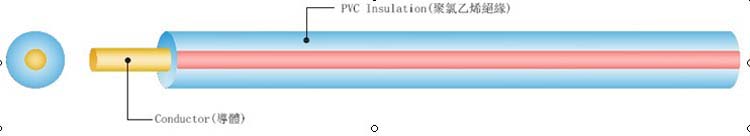

Material：
Conductor：Annealed or tinned stranded copper
Insulation：Lead-free polyvinyl chloride (80°C)
Standard：Japanese Automobile Standard：JASO D 611 |
 |
|
Conductor |
Insulation thickness |
Overall diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Sectional area |
Diameter |
Standard |
Minimum |
Standard |
Maximum |
|
mm2 |
No./mm |
mm2 |
mm |
mm |
mm |
mm |
mm |
mΩ/ m |
kg / km |
m |
|
0.30 |
7/0.26 |
0.3716 |
0.8 |
0.5 |
0.32 |
1.8 |
1.9 |
50.2 |
6 |
500 |
|
0.50 |
7/0.32 |
0.5629 |
1.0 |
0.5 |
0.32 |
2.0 |
2.1 |
32.7 |
7 |
500 |
|
0.85 |
16/0.26 |
0.8494 |
1.2 |
0.5 |
0.32 |
2.2 |
2.3 |
22.0 |
11 |
500 |
|
0.85 |
11/0.32 |
0.8846 |
1.2 |
0.5 |
0.32 |
2.2 |
2.3 |
20.8 |
11 |
500 |
|
1.25 |
16/0.32 |
1.287 |
1.5 |
0.5 |
0.32 |
2.5 |
2.6 |
14.3 |
16 |
500 |
|
2.0 |
26/0.32 |
2.091 |
1.9 |
0.5 |
0.32 |
2.9 |
3.1 |
8.81 |
23 |
200 |
|
3.0 |
41/0.32 |
3.297 |
2.4 |
0.6 |
0.40 |
3.6 |
3.8 |
5.59 |
36 |
200 |
|
5.0 |
65/0.32 |
5.228 |
3.0 |
0.7 |
0.48 |
4.4 |
4.6 |
3.52 |
55 |
200 |
|
0.3f |
15/0.18 |
0.3817 |
0.8 |
0.5 |
0.32 |
1.8 |
1.9 |
48.9 |
6 |
500 |
|
0.5f |
20/0.18 |
0.5087 |
1.0 |
0.5 |
0.32 |
2.0 |
2.1 |
36.7 |
7 |
500 |
|
0.75f |
30/0.18 |
0.7630 |
1.2 |
0.5 |
0.32 |
2.2 |
2.3 |
24.4 |
10 |
500 |
|
1.25f |
50/0.18 |
1.273 |
1.5 |
0.5 |
0.32 |
2.5 |
2.6 |
14.7 |
16 |
500 |
|
2f |
37/0.26 |
1.964 |
1.9 |
0.5, , |
0.32 |
2.9 |
3.1 |
9.50 |
23 |
200 |
|
Remarks：f in nominal sectional area indicates flexible | |
|
|
