| AEX Heat resistant low tension cables for automobiles |
Description：
A：Low-voltage cables for automobiles
EX：cross-linked polyethylene mixture
Application：Wire harness of low voltage electric circuits for automobiles Especially used for circuits requiring heat resistance and cold resistance

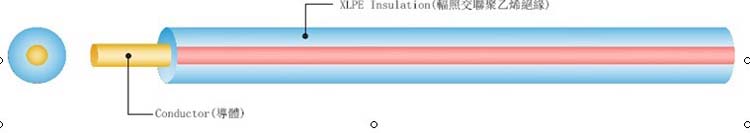

Material:Conductor：Annealed or tinned stranded copper
Insulation：Low halogen or halogen-free cross-linked polyolefin(120°C)
Standard：Japanese Automobile Standard：JASO D 608 |
 |
|
Conductor |
Insulation thickness |
Overall diameter |
Conductor resistance |
Weight |
Package |
|
Size |
Construction |
Sectional area |
Diameter |
Standard |
Maximum |
No plating |
plating |
|
mm2 |
No./mm |
mm2 |
mm |
mm |
mm |
mm |
mΩ/ m |
mΩ/ m |
kg / km |
m |
|
0.5f |
20/0.18 |
0.5087 |
1.0 |
0.5 |
2..0 |
2.2 |
36.7 |
38.6 |
8 |
500 |
|
0.5 |
7/0.32 |
0.5629 |
1.0 |
0.5 |
2.0 |
2.2 |
32.7 |
34.6 |
8 |
500 |
|
0.75f |
30/0.18 |
0.7630 |
1.1 |
0.5 |
2.1 |
2.4 |
24.4 |
25.8 |
10 |
500 |
|
0.85 f |
34/0.18 |
0.8651 |
1.2 |
0.5 |
2.2 |
2.4 |
20.8 |
21.2 |
11 |
500 |
|
0.85 |
11/0.32 |
0.8846 |
1.2 |
0.5 |
2.2 |
2.4 |
21.6 |
22.0 |
11 |
500 |
|
1.25f |
50/0.18 |
1.273 |
1.5 |
0.6 |
2.7 |
2.9 |
14.7 |
15.5 |
17 |
500 |
|
1.25 |
16/0.32 |
1.287 |
1.5 |
0.6 |
2.7 |
2.9 |
14.3 |
15.1 |
17 |
500 |
|
2.0 |
26/0.32 |
2.091 |
1.9 |
0.6 |
3.1 |
3.4 |
8.81 |
9.30 |
26 |
200 |
|
3.0 |
41/0.32 |
3.297 |
2.4 |
0.7 |
3.8 |
4.1 |
5.59 |
5.90 |
40 |
200 |
|
5.0 |
65/0.32 |
5.228 |
3.0 |
0.8 |
4.6 |
4.9 |
3.52 |
3.72 |
61 |
200 |
|
8.0 |
50/0.45 |
7.952 |
3.7 |
0.8 |
5.3 |
5.6 |
2.32 |
2.45 |
88 |
100 |
|
Remarks：f in nominal sectional area indicates flexible | |
|
|
