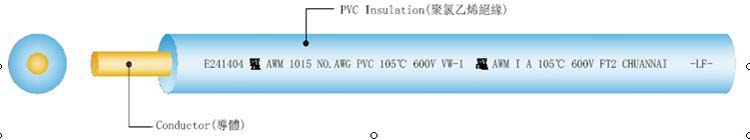

| STYLE 1015 PVC INSULATED WIRE |
Description：
Related temperature：105℃
Rated voltage：600V
Flame test：UL VW-1及CSA FT1 vertical flame test
Insulation：Lead-free polyvinyl chloride
Conductor：30～08AWG Solid or stranded Tinned or copper conductor
Standard：UL758、UL1581、CSA C22.2 No.210.2
Application：For internal wiring of electronic and electrical equipment
Might be replaced by no-halogen XLPE insulated AWM 3386 |
 |
|
Type |
Conductor |
Insulation
thickness |
Overall
Diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Diameter |
|
AWG |
No./mm |
mm |
mm |
mm |
Ω/ km |
kg / km |
Ft / m |
|
Stranded |
08 |
105/0.320 |
3.78 |
1.15 |
6.08 |
2.230 |
103.5 |
1000 / (305) |
|
10 |
66/0.320 |
3.00 |
0.81 |
4.62 |
3.546 |
62.8 |
|
12 |
65/0.254 |
2.36 |
3.98 |
5.64 |
42.1 |
|
14 |
41/0.254 |
1.88 |
3.50 |
8.94 |
29.2 |
|
16 |
26/0.254 |
1.49 |
3.11 |
14.6 |
20.8 |
|
16 |
65/0.160 |
1.49 |
3.11 |
14.6 |
20.7 |
|
18 |
16/0.254 |
1.17 |
2.79 |
23.2 |
15.4 |
2000 or 1000
/
(610 or 305) |
|
18 |
34/0.180 |
1.21 |
2.83 |
23.2 |
15.6 |
|
18 |
41/0.160 |
1.18 |
2.80 |
23.2 |
15.2 |
|
20 |
21/0.180 |
0.95 |
2.57 |
36.7 |
11.6 |
|
20 |
26/0.160 |
0.95 |
2.57 |
36.7 |
11.5 |
|
22 |
17/0.160 |
0.76 |
2.38 |
59.4 |
9.2 |
|
24 |
11/0.160 |
0.61 |
2.23 |
94.2 |
7.5 |
|
26 |
7/0.160 |
0.49 |
2.11 |
150 |
6.3 |
|
28 |
7/0.127 |
0.39 |
2.01 |
239 |
5.4 |
|
30 |
7/0.102 |
0.31 |
1.93 |
381 |
4.8 |
|
Solid |
14 |
1/1.630 |
1.63 |
3.25 |
8.78 |
28.3 |
1000 / (305) |
|
16 |
1/1.290 |
1.29 |
2.91 |
14.0 |
19.9 |
|
18 |
1/1.024 |
1.02 |
2.64 |
22.2 |
14.5 |
2000 or 1000
/
(610 or 305) |
|
20 |
1/0.813 |
0.81 |
2.43 |
35.2 |
11.0 |
|
22 |
1/0.643 |
0.64 |
2.26 |
56.4 |
8.5 |
|
24 |
1/0.511 |
0.51 |
2.13 |
89.3 |
6.9 |
|
26 |
1/0.404 |
0.40 |
2.02 |
143 |
5.8 | |
|
|
