| STYLE 1007 PVC INSULATED WIRE |
Description：
Related temperature：80℃
Rated voltage：300V
Flame test：UL VW-1及CSA FT1 vertical flame test

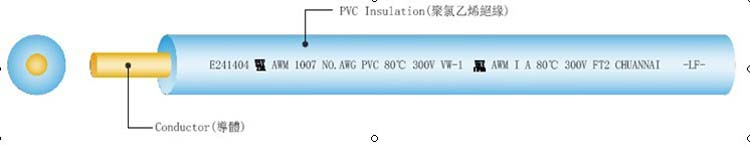

Insulation：Lead-free polyvinyl chloride
Conductor：30～16AWG Solid or stranded Tinned or copper conductor
Standard：UL758、UL1581、CSA C22.2 No.210.2
Application：For internal wiring of electronic and electrical equipment
Might be replaced by no-halogen XLPE insulated AWM 3385 |
 |
|
Type |
Conductor |
Insulation
thickness |
Overall
Diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Diameter |
|
AWG |
No./mm |
mm |
mm |
mm |
Ω/ km |
kg / km |
Ft / m |
|
Stranded |
16 |
26/0.254 |
1.49 |
0.42 |
2.33 |
14.6 |
15.7 |
2000 or 1000
/
(610 or 305) |
|
16 |
65/0.160 |
1.49 |
2.33 |
14.6 |
15.6 |
|
18 |
16/0.254 |
1.17 |
2.01 |
23.2 |
10.5 |
|
18 |
34/0.180 |
1.21 |
2.05 |
23.2 |
11.1 |
|
18 |
41/0.160 |
1.18 |
2.02 |
23.2 |
10.6 |
|
20 |
21/0.180 |
0.95 |
1.79 |
36.7 |
7.6 |
|
20 |
26/0.160 |
0.95 |
1.79 |
36.7 |
7.4 |
|
22 |
17/0.160 |
0.76 |
1.60 |
59.4 |
5.4 |
|
24 |
11/0.160 |
0.61 |
1.45 |
94.2 |
4.0 |
|
26 |
7/0.160 |
0.49 |
1.33 |
150 |
3.1 |
|
28 |
7/0.127 |
0.39 |
1.23 |
239 |
2.4 |
|
30 |
7/0.102 |
0.31 |
1.15 |
381 |
1.9 |
|
Solid |
16 |
1/1.290 |
1.29 |
2.13 |
14.0 |
15.2 |
|
18 |
1/1.024 |
1.02 |
1.86 |
22.2 |
10.3 |
|
20 |
1/0.813 |
0.81 |
1.65 |
35.2 |
7.1 |
|
22 |
1/0.643 |
0.64 |
1.48 |
56.4 |
5.0 |
|
24 |
1/0.511 |
0.51 |
1.35 |
89.3 |
3.7 |
|
26 |
1/0.404 |
0.40 |
1.24 |
143 |
2.8 | |
|
|
