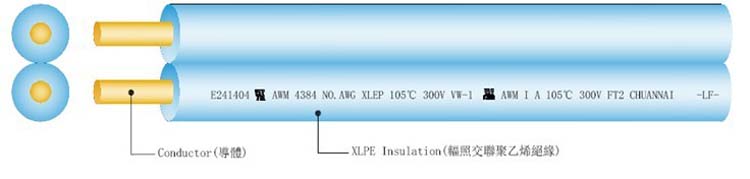

| STYLE 4384 XLPE Insulated Flat ribbon-type wire |
Description：
Related temperature：105℃
Rated voltage：300V
Flame test：UL VW-1&CSA FT1 vertical flame test
Insulation： Low halogen or halogen-free XLPE
Conductor：26～16AWG Solid or stranded Tinned or copper conductor
Standard：UL758、UL1581、CSA C22.2 No.210.2
Application：For internal wiring of electronic ,electrical ,electromechanical and transformer equipment |
 |
|
Type |
Cores |
Conductor |
Insulation
thickness |
Overall
Diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Diameter |
|
AWG |
No./mm |
mm |
mm |
mm |
Ω/ km |
kg / km |
Ft / m |
|
Stranded |
2 |
16 |
26/0.254 |
1.49 |
0.42 |
2.3×4.6 |
14.6 |
16.0 |
2000 or 1000
/
(610 or 305) |
|
18 |
41/0.160 |
1.18 |
2.0×4.0 |
23.2 |
11.0 |
|
20 |
26/0.160 |
0.95 |
1.8×3.6 |
36.7 |
7.7 |
|
22 |
17/0.160 |
0.76 |
1.6×3.2 |
59.4 |
5.7 |
|
24 |
11/0.160 |
0.61 |
1.4×2.8 |
94.2 |
4.3 |
|
24 |
14/0.140 |
0.60 |
1.4×2.8 |
94.2 |
4.2 |
|
24 |
20/0.120 |
0.62 |
1.4×2.8 |
94.2 |
4.3 |
|
26 |
7/0.160 |
0.49 |
1.3×2.6 |
150 |
3.3 | |
|
|
