STYLE 3265 XLPE INSULATED WIRE
Description：
Related temperature：125℃
Rated voltage：150V
Flame test：UL VW-1及CSA FT1 vertical flame test

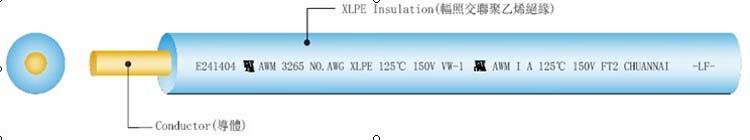

Insulation：Low halogen or halogen-free XLPE
Conductor：30～16AWG Solid or stranded Tinned or copper conductor
Standard：UL758、UL1581、CSA C22.2 No.210.2
Application：For internal wiring of electronic ,electrical ,electromechanical and transformer equipment

Type

Conductor

Insulation

thickness

Overall

Diameter

Conductor

resistance

Weight

Package

Size



Construction

Diameter

AWG

No./mm

mm

mm

mm

Ω/ km

kg / km

Ft / m

Stranded

16

26/0.254

1.49

0.28

2.05

14.6

14.2

2000 or 1000

/

(610 or 305)

16

65/0.160

1.49

2.05

14.6

14.1

18

16/0.254

1.17

1.73

23.2

9.2

18

34/0.180

1.21

1.77

23.2

9.8

18

41/0.160

1.18

1.74

23.2

9.4

20

21/0.180

0.95

1.51

36.7

6.4

20

26/0.160

0.95

1.51

36.7

6.3

22

17/0.160

0.76

1.32

59.4

4.4

24

11/0.160

0.61

1.17

94.2

3.2

26

7/0.160

0.49

1.05

150

2.3

28

7/0.127

0.39

0.95

239

1.7

30

7/0.102

0.31

0.87

381

1.3

Solid

16

1/1.290

1.29

1.85

14.0

13.9

18

1/1.024

1.02

1.58

22.2

9.2

20

1/0.813

0.81

1.37

35.2

6.1

22

1/0.643

0.64

1.20

56.4

4.1

24

1/0.511

0.51

1.07

89.3

2.9

26

1/0.404

0.40

0.96

143

2.0
