| STYLE 3298 XLPE INSULATED WIRE |
Description：
Related temperature：125℃
Rated voltage： 600V
Flame test：UL VW-1及CSA FT1 vertical flame test
Insulation：Low halogen or halogen-free XLPE

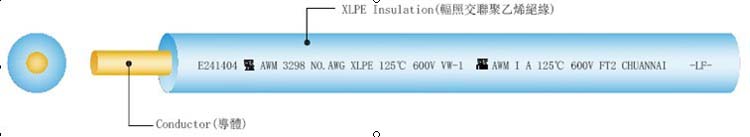

Conductor：20～16AWG Solid or stranded Tinned or copper conductor
Standard：UL758、UL1581、CSA C22.2 No.210.2
Application：For internal wiring of electronic ,electrical ,electromechanical and transformer equipment |
 |
|
Type |
Conductor |
Insulation
thickness |
Overall
Diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Diameter |
|
AWG |
No./mm |
mm |
mm |
mm |
Ω/ km |
kg / km |
Ft / m |
|
Stranded |
16 |
26/0.254 |
1.49 |
1.15 |
4.20 |
14.6 |
27 |
2000 or 1000
/
(610 or 305) |
|
16 |
65/0.160 |
1.49 |
4.20 |
14.6 |
27 |
|
18 |
16/0.254 |
1.17 |
3.47 |
23.2 |
21 |
|
18 |
34/0.180 |
1.21 |
3.51 |
23.2 |
21 |
|
18 |
41/0.160 |
1.18 |
3.48 |
23.2 |
21 |
|
20 |
21/0.180 |
0.95 |
3.25 |
36.7 |
17 |
|
20 |
26/0.160 |
0.95 |
3.25 |
36.7 |
17 |
|
Solid |
16 |
1/1.290 |
1.29 |
3.59 |
14.0 |
26 |
|
18 |
1/1.024 |
1.02 |
3.32 |
22.2 |
20 |
|
20 |
1/0.813 |
0.81 |
3.11 |
35.2 |
16 | |
|
|
