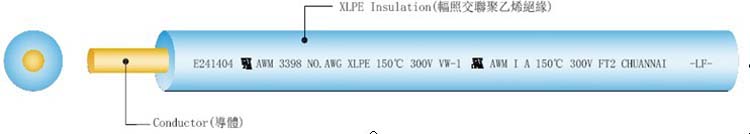

| STYLE 3398XLPE INSULATED WIRE |
Description：
Related temperature：150℃
Rated voltage：300V
Flame test：UL VW-1及CSA FT1 vertical flame test
Insulation：Low halogen or halogen-free XLPE
Conductor：30～14AWG Solid or stranded Tinned or copper conductor
Standard：UL758、UL1581、CSA C22.2 No.210.2
Application：For internal wiring of electronic ,electrical ,electromechanical and transformer equipment |
 |
|
Type |
Conductor |
Insulation
thickness |
Overall Diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Diameter |
|
AWG |
No./mm |
mm |
mm |
mm |
Ω/ km |
kg / km |
Ft / m |
|
Stranded |
14 |
41/0.254 |
1.88 |
0.46 |
2.80 |
8.94 |
23.9 |
2000 or 1000
/
(610 or 305) |
|
16 |
26/0.254 |
1.49 |
2.41 |
14.6 |
16.2 |
|
16 |
65/0.160 |
1.49 |
2.41 |
14.6 |
16.1 |
|
18 |
16/0.254 |
1.17 |
2.09 |
23.2 |
10.9 |
|
18 |
34/0.180 |
1.21 |
2.13 |
23.2 |
11.5 |
|
18 |
41/0.160 |
1.18 |
2.10 |
23.2 |
11.0 |
|
20 |
21/0.180 |
0.95 |
1.87 |
36.7 |
7.9 |
|
20 |
26/0.160 |
0.95 |
1.87 |
36.7 |
7.8 |
|
22 |
17/0.160 |
0.76 |
0.40 |
1.56 |
59.4 |
5.3 |
|
24 |
11/0.160 |
0.61 |
1.41 |
94.2 |
3.9 |
|
26 |
7/0.160 |
0.49 |
1.29 |
150 |
2.9 |
|
28 |
7/0.127 |
0.39 |
1.19 |
239 |
2.3 |
|
30 |
7/0.102 |
0.31 |
1.11 |
381 |
1.8 |
|
Solid |
16 |
1/1.290 |
1.29 |
0.46 |
2.21 |
14.0 |
15.6 |
|
18 |
1/1.024 |
1.02 |
1.94 |
22.2 |
10.7 |
|
20 |
1/0.813 |
0.81 |
1.73 |
35.2 |
7.5 |
|
22 |
1/0.643 |
0.64 |
0.40 |
1.44 |
56.4 |
4.9 |
|
24 |
1/0.511 |
0.51 |
1.31 |
89.3 |
3.6 |
|
26 |
1/0.404 |
0.40 |
1.20 |
143 |
2.7 | |
|
|
