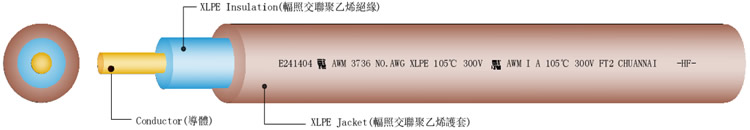

| STYLE 3736 XLPE INSULATED WIRE |
Description：
Related temperature：105℃
Rated voltage：300V
Flame test：UL VW-1及CSA FT1 vertical flame test
Insulation：Low halogen or halogen-free XLPE
Conductor：26~10AWG Solid or stranded Tinned or copper conductor
Standard：UL758、UL1581、CSA C22.2 No.210.2
Application：For internal wiring of electronic ,electrical ,electromechanical and transformer equipment |
 |
|
類型
Type |
導體Conductor |
絕緣厚度
Insulation
thickness |
絕緣外徑
Insulation
diameter |
护套厚度
Jacket
thickndss |
护套
Jacket
diameter |
導體電阻
Conductor
resistance |
重量
Weight |
包裝
Package |
|
規格
Size |
導體結構
Construction |
導體直徑
Diameter |
|
AWG |
No./mm |
mm |
mm |
mm |
mm |
mm |
Ω/ km |
kg / km |
Ft / m |
|
絞線
Stranded |
10 |
66/0.320 |
3.00 |
0.3 |
3.60 |
0.25 |
4.10 |
3.546 |
57.3 |
1000 / 305 |
|
12 |
65/0.254 |
2.36 |
2.96 |
3.46 |
5.64 |
37.4 |
|
14 |
41/0.254 |
1.88 |
2.48 |
2.98 |
8.94 |
25.1 |
|
16 |
26/0.254 |
1.49 |
0.25 |
1.99 |
0.23 |
2.45 |
14.6 |
16.4 |
2000 or 1000
/
(610 or 305) |
|
16 |
65/0.160 |
1.49 |
1.99 |
2.45 |
14.6 |
16.3 |
|
18 |
16/0.254 |
1.17 |
1.67 |
2.13 |
23.2 |
11.1 |
|
18 |
34/0.180 |
1.21 |
1.71 |
2.17 |
23.2 |
11.7 |
|
18 |
41/0.160 |
1.18 |
1.68 |
2.14 |
23.2 |
11.2 |
|
20 |
21/0.180 |
0.95 |
1.45 |
1.91 |
36.7 |
8.1 |
|
20 |
26/0.160 |
0.95 |
1.45 |
1.91 |
36.7 |
8.0 |
|
22 |
17/0.160 |
0.76 |
1.26 |
1.72 |
59.4 |
5.9 |
|
24 |
11/0.160 |
0.61 |
1.11 |
1.57 |
94.2 |
4.5 |
|
26 |
7/0.160 |
0.49 |
0.99 |
1.45 |
150 |
3.5 |
|
單條
Solid |
16 |
1/1.290 |
1.29 |
1.79 |
2.25 |
14.0 |
15.8 |
|
18 |
1/1.024 |
1.02 |
1.52 |
1.98 |
22.2 |
10.9 |
|
20 |
1/0.813 |
0.81 |
1.31 |
1.77 |
35.2 |
7.6 |
|
22 |
1/0.643 |
0.64 |
1.14 |
1.60 |
56.4 |
5.5 |
|
24 |
1/0.511 |
0.51 |
1.01 |
1.47 |
89.3 |
4.1 |
|
26 |
1/0.404 |
0.40 |
0.90 |
1.36 |
143 |
3.2 | |
|
|
