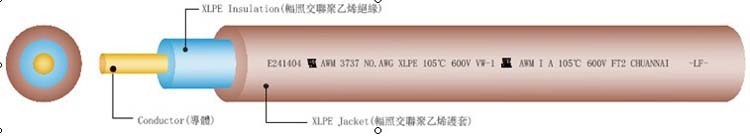

| STYLE 3737 XLPE INSULATED WIRE |
Description：
Related temperature：105℃
Rated voltage：600V
Flame test：UL VW-1及CSA FT1 vertical flame test
Insulation：Low halogen or halogen-free XLPE
Conductor：26~10AWG Solid or stranded Tinned or copper conductor
Standard：UL758、UL1581、CSA C22.2 No.210.2
Application：For internal wiring of electronic ,electrical ,electromechanical and transformer equipment |
 |
|
Type |
Conductor |
Insulation
thickness |
Insulation
diameter |
Jacket
thickndss |
Jacket
diameter |
Conductor
resistance |
Weight |
Package |
|
Size |
Construction |
Diameter |
|
AWG |
No./mm |
mm |
mm |
mm |
mm |
mm |
Ω/ km |
kg / km |
Ft / m |
|
Stranded |
10 |
66/0.320 |
3.00 |
0.56 |
4.12 |
0.23 |
4.58 |
3.546 |
62.3 |
1000 / 305 |
|
12 |
65/0.254 |
2.36 |
3.48 |
3.94 |
5.64 |
41.7 |
|
14 |
41/0.254 |
1.88 |
3.00 |
3.46 |
8.94 |
28.8 |
|
16 |
26/0.254 |
1.49 |
2.61 |
3.07 |
14.6 |
20.5 |
2000 or 1000
/
(610or305) |
|
16 |
65/0.160 |
1.49 |
2.61 |
3.07 |
14.6 |
20.4 |
|
18 |
16/0.254 |
1.17 |
2.29 |
2.75 |
23.2 |
14.7 |
|
18 |
34/0.180 |
1.21 |
2.33 |
2.79 |
23.2 |
15.4 |
|
18 |
41/0.160 |
1.18 |
2.30 |
2.76 |
23.2 |
14.9 |
|
20 |
21/0.180 |
0.95 |
2.07 |
2.53 |
36.7 |
11.4 |
|
20 |
26/0.160 |
0.95 |
2.07 |
2.53 |
36.7 |
11.2 |
|
22 |
17/0.160 |
0.76 |
1.88 |
2.34 |
59.4 |
8.9 |
|
24 |
11/0.160 |
0.61 |
1.73 |
2.19 |
94.2 |
7.3 |
|
26 |
7/0.160 |
0.49 |
1.61 |
2.07 |
150 |
6.1 |
|
28 |
7/0.127 |
0.39 |
1.51 |
1.97 |
239 |
5.2 |
|
30 |
7/0.102 |
0.31 |
1.43 |
1.89 |
381 |
4.6 |
|
Solid |
16 |
1/1.290 |
1.29 |
2.41 |
2.87 |
14.0 |
19.7 |
|
18 |
1/1.024 |
1.02 |
2.14 |
2.60 |
22.2 |
14.3 |
|
20 |
1/0.813 |
0.81 |
1.93 |
2.39 |
35.2 |
10.7 |
|
22 |
1/0.643 |
0.64 |
1.76 |
2.22 |
56.4 |
8.3 |
|
24 |
1/0.511 |
0.51 |
1.63 |
2.09 |
89.3 |
6.7 |
|
26 |
1/0.404 |
0.40 |
1.52 |
1.98 |
143 |
5.6 | |
|
|
